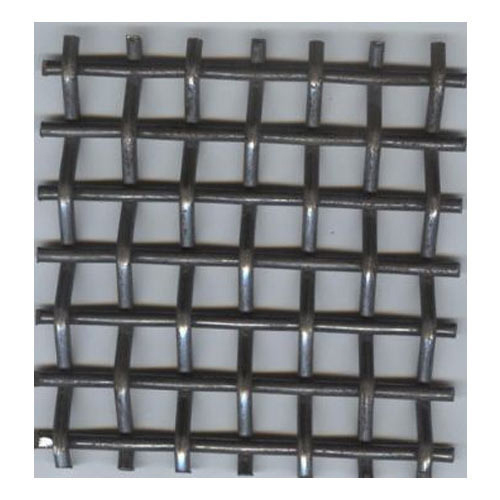

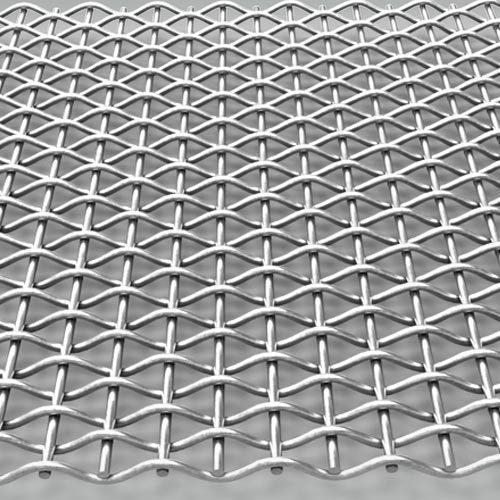

Sand Screen Wire Mesh

Name: Sand Screen Wire Mesh
Brand: HMB ENGINEERING

Get a Price/Quote

MOQ : 100 Kilograms

Sand Screen Wire Mesh Specification

Surface Treatment
Galvanized / PVC Coated

Hole Shape
Square

Length
Standard rolls of 30 meters, customizable

Aperture
Varies (as per mesh size)

Wire Gauge
Customized (as per requirement)

Product Type
Wire Mesh

Mesh Type
Wire Mesh

Mesh Style
Plain Weave / Welded

Material
Steel

Alloy
Available in Stainless Steel grades 304, 316

Application
Sand Screening, Gravel Filtering, Construction, Mining Industry

Dimensions
1m, 1.2m, 1.5m width (custom available)

Wire Diameter
1-19.05 mm Millimeter (mm)

Weight
Depends on size and material (typically 15-50 kg per roll)

Color
Silver

Compliance Standard
ASTM/IS/EN (as applicable)

Edge Finishing
Cut, Folded, or Framed

Corrosion Resistance
Excellent (Galvanized/SS)

Packing
Waterproof paper, wooden box, or as required

Open Area Percentage
Depends on mesh (30% - 80%)

Temperature Resistance
Up to 800C (for Stainless Steel)

Tensile Strength
High tensile for heavy-duty applications

Service Life
Long, depends on material and environment

Sand Screen Wire Mesh Trade Information

Minimum Order Quantity
100 Kilograms

Supply Ability
5000 Kilograms Per Month

Delivery Time
7-10 Days

Sand Screen Wire Mesh About

Sand Screen Wire Mesh is available in a variety of wire diameters, mesh openings, and open area options. It is widely used for applications such as screening, sizing, grading, separating, scalping, and washing. The mesh can also be custom-designed to accommodate plungers and vibrating rods for enhanced protection against tearing. It is typically installed above rubber beads to prevent metal-to-metal contact, ensuring durability and reliable performance.

Features:

No tearing and abrasion
Placed above rubber beads to avoid metal to metal contact
Corrosion resistance
High temperature resistance

Applications:

Power plants
Coal factories
Chemical industry
Mining industry
Paper and pulp industry
Quarrying
Iron ore and steel industry
Cement industry
Stone crushing industry

Used for:

Sizing
Screening
Shifting
Grading
Separating
Scalping
Washing

Specification:

Material: High Carbon Steel Wire
Weave Style: Plain Weave
Wire Diameter: 1-19.05 mm

Exceptional Durability and Performance

Manufactured using high tensile steel wires or stainless steel alloys, this mesh provides unmatched strength, excellent corrosion resistance, and temperature endurance up to 800C for stainless steel variants. Thanks to its robust construction, it delivers long-lasting service even in harsh environments, making it an optimal choice for heavy-duty sand screening and filtration jobs.

Flexible Customization for Diverse Needs

Sand Screen Wire Mesh can be tailored in terms of aperture, mesh size, wire gauge, length (up to standard 30 meters), and width (1m, 1.2m, 1.5m, or as required). Edge finishing options include cut, folded, or framed edges, and packing options are available to suit different transport or storage requirements, ensuring convenience and adaptability for every project.

Broad Range of Applications

This mesh finds utility across sand screening, gravel filtering, mining, and construction industries. Its customizable features and compliance with international standards (ASTM/IS/EN) make it suitable for environments demanding precise filtration and reliable mechanical support, underlining its role as a versatile and dependable industrial mesh solution.

FAQ's of Sand Screen Wire Mesh:

Q: How is the open area percentage of Sand Screen Wire Mesh determined, and why does it matter?

A: The open area percentage (ranging from 30% to 80%) depends on the chosen mesh size and wire diameter. It directly affects filtration efficiency and material flow, allowing users to select the optimal balance for their specific application needs.

Q: What edge finishing options are available and why might I choose one over another?

A: You can select from cut, folded, or framed edges. Folded or framed edges provide enhanced strength and easier installation, especially in heavy-duty or framed setups, while cut edges may be suitable for temporary or budget-sensitive uses.

Q: When should I consider galvanized or stainless steel (304/316) mesh options?

A: Galvanized mesh offers excellent corrosion resistance for general outdoor or moisture-prone environments. Stainless steel (304/316) is ideal for applications needing superior corrosion and temperature resistance-such as industrial mining or high-temperature filtering up to 800C.

Q: Where is this wire mesh typically installed or used?

A: It is used in sand screening, gravel filtering, mining operations, and construction sites, wherever reliable filtration and durability are essential in separating or grading granular materials.

Q: What is the process for ordering customized dimensions or surface treatments?

A: You may specify your preferred width, mesh size, wire gauge, length, edge finishing, and surface treatment (galvanized or PVC-coated) when placing your order with the manufacturer or supplier. Customization ensures the mesh fits your unique technical requirements.

Q: How does Sand Screen Wire Mesh benefit my operation over alternative screening solutions?

A: With its high tensile strength, excellent corrosion resistance, and customizable specifications, this mesh delivers superior longevity, reliable filtration, and minimal maintenance, ultimately reducing operational downtime and cost.

Q: What packing options are offered for shipping and storage?

A: Meshes are packed in waterproof paper or wooden boxes. Custom packing is also available to suit logistic needs, ensuring product integrity and easy handling during transportation.
